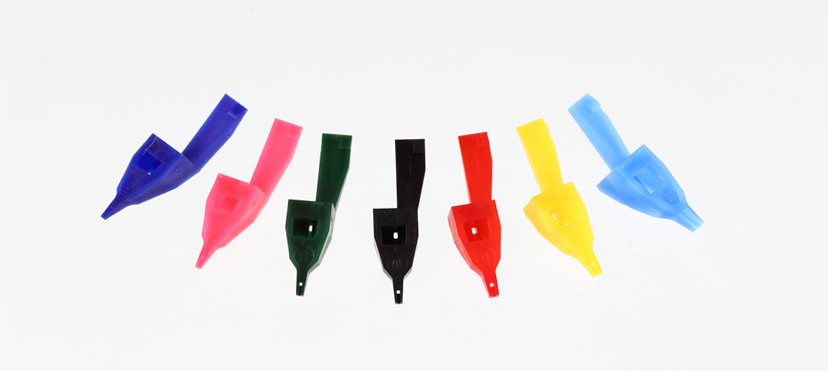

> 제품소개 > WIRE GUIDENEW OE-7200 Wire Guide

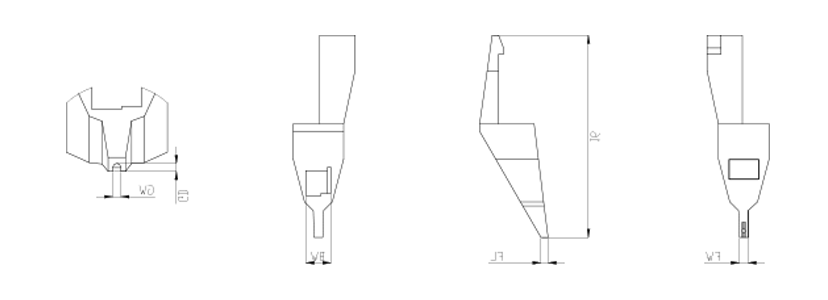

| Part No. | WIRE SIZE MICRON (MIL) | COLOR | FL | FW | BW |
|---|---|---|---|---|---|
| SST-WG-5-1 | 125 (5) | Dk.Blue | 0.31 | 0.38 | 2.78 |
| SST-WG-6-1 | 150 (6) | Pink | 0.36 | 0.45 | 2.80 |
| SST-WG-8-1 | 200 (8) | Green | 0.44 | 0.59 | 2.80 |
| SST-WG-10-1 | 250 (10) | Black | 0.54 | 0.65 | 2.98 |
| SST-WG-12-1 | 300 (12) | Red | 0.62 | 0.81 | 2.98 |
| SST-WG-15-1 | 375 (15) | Yellow | 0.75 | 0.90 | 3.08 |
| SST-WG-20-1 | 500 (20) | Lt.Blue | 0.87 | 1.03 | 3.18 |
